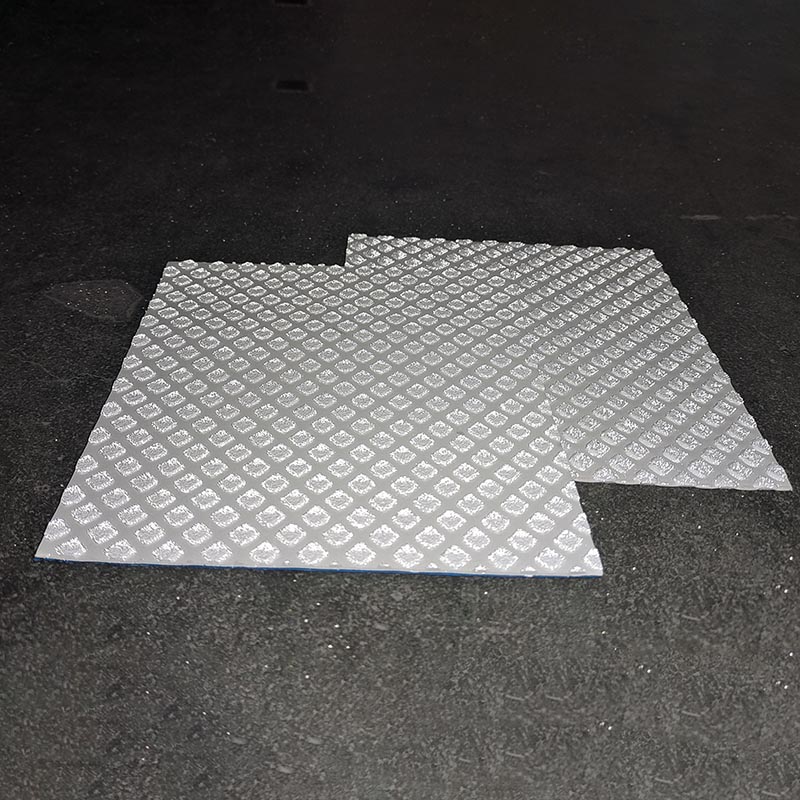

Patterned raised road reflective marking tape
product Information
Product Features
1. The base material and surface of the product are both equipped with glass beads, which have three-dimensional and all-round reflectivity, especially at night and rainy days.
2. It has excellent properties such as good anti-slip and wear resistance.
3. The bottom layer is an adhesive with strong adhesion and good weather resistance, making the tape firmly bonded to the ground.
4. Using pre-forming technology, the construction is simple and can be pasted on the ground.
Scope of application:
1. Suitable for various road surfaces such as concrete, asphalt, cement, marble, etc.
2. Depending on the road conditions, traffic flow, and installation conditions, the service life can reach 2-3 years at normal temperature.
Color: white, yellow, black, etc. (customized as required)
Product size reference chart
Pre-formed pattern-type (convex type) road reflective marking tape can be produced into marking products of any specification according to customer requirements.
| Product number | Standard Length(m) | Standard Width（cm) | Thickness（mm) | Weight(±10%) | Conventional packaging |
| L5111X | 40M | 5, 10, 15, 20, Customizable | 2.5MM | 3.1kg/sqm | 300*300*320MM |
Technical Indicators
| Properties | Typical data | Unit | Test Methods | |
| L51111 | L51112 | ________ | ________ | |
| Color | white | yellow | ________ | ________ |
| Thickness | 2.5 | 2.5 | mm | GB/T7125 |
| Water resistance | pass | pass | ________ | GB/T24717 |
| Acid resistance | pass | pass | ________ | GB/T24717 |
| Wear-resistant | 40 | 40 | mg | GB/T24717 |
| Retroreflection | >300 >600 >1000 | >200 >400 >800 | mcd/m2/lux | GB/T24717 |
| Minimum adhesion | >50 | >50 | N/25mm | GB/T24717 |
| Anti-skid value | >70 | >70 | BPN | GB/T24717 |
